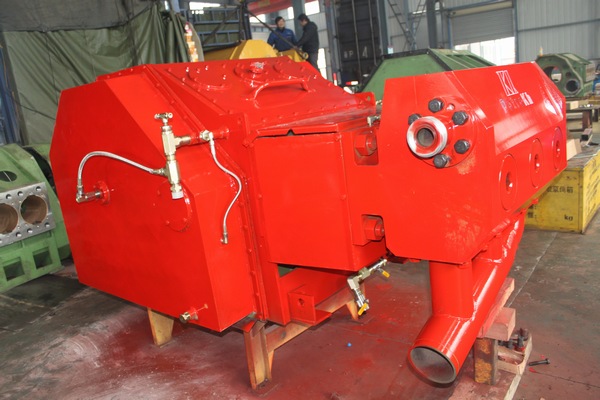

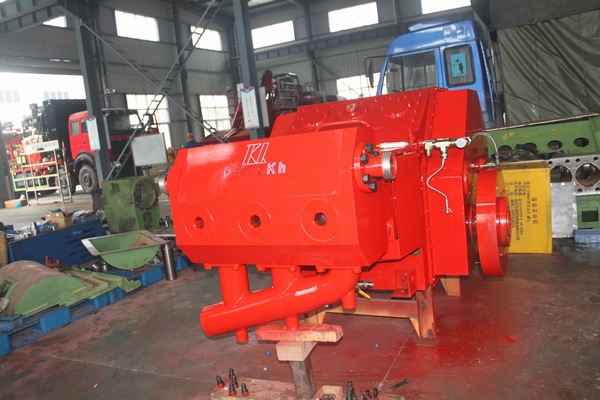

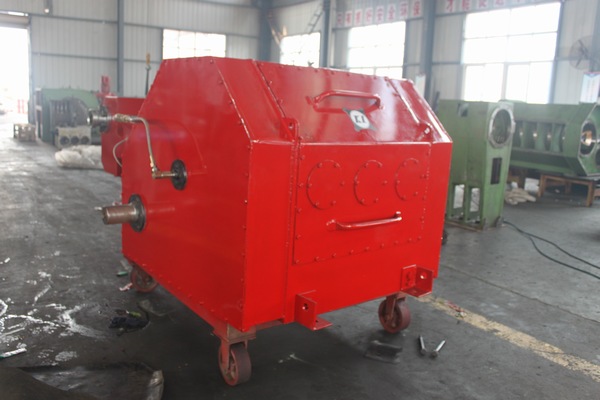

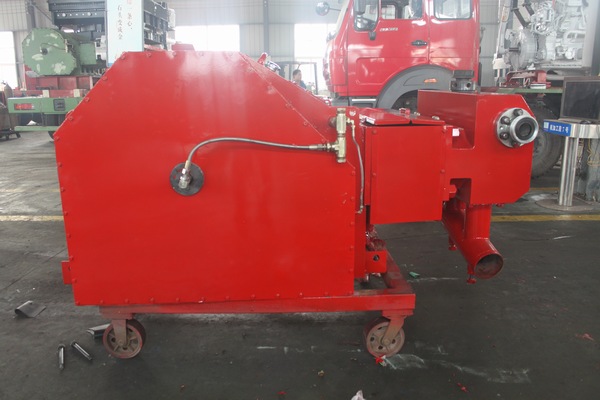

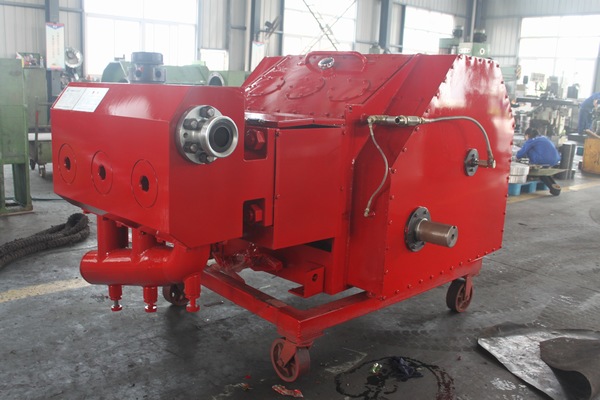

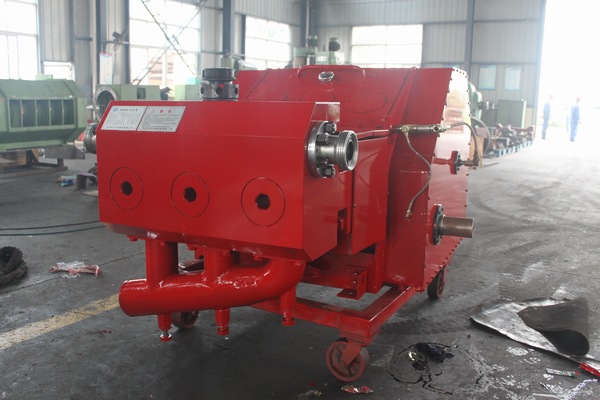

1800HP Frac Pump Skid

Our 1800HP frac pump skid refers to triple plunger pump for oil/gas/petroleum well stimulation. For this horizontal positive-displacement reciprocating pump, the maximum rated brake power is 1342 KW (1800 HP) and the stroke is203.2 mm(8”). Besides, three plunger diameters are optional:4”, 4-1/2”and5”. In this way, it is suitable for different requirements of pressure and displacement. Although the plunger diameters are different, its power end is the same to each other. 1800HP frac pump skid is widely applicable for intermittent oilfield operations, such as acidizing, fracturing, well killing, and so on.

Parameters

Pump Type	1800 HP
Max. Input Power	1342KW
Max. Load of Conrod	1000 kN
Stroke	203.2 mm
Max. Specific Water Cycle	330 rpm
Drive Ratio	6.353:1
Dimension	2400 × 1657 ×1120 mm
Weight	5398 kg

Performance

SpecificWater Circle(rpm)	75		115		200		300		330
Plunger Diameter	Displacement (L/min)	Pressure (Mpa)	Displacement (L/min)	Pressure (Mpa)	Displacement (L/min)	Pressure (Mpa)	Displacement (L/min)	Pressure (Mpa)	Displacement (L/min)	Pressure (Mpa)
4”	371	123.5	568	123.5	988	73.6	1483	49	1631	44.6
4-1/2”	469	97.6	719	97.6	1251	58	1876	38.7	2064	35.1
5”	579	79	889	79	1544	47	2317	31.3	2548	28.4
