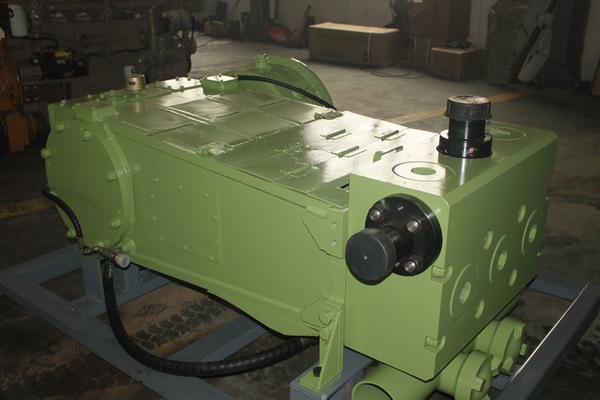

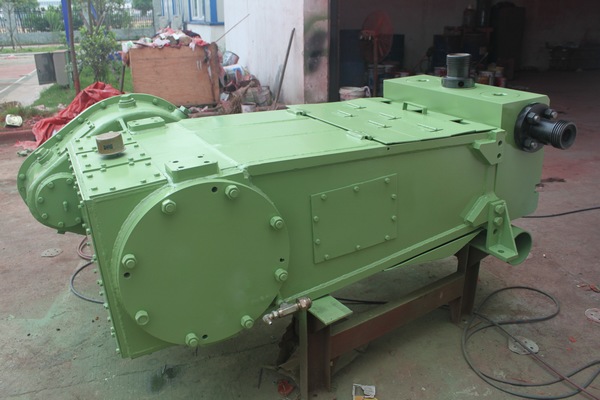

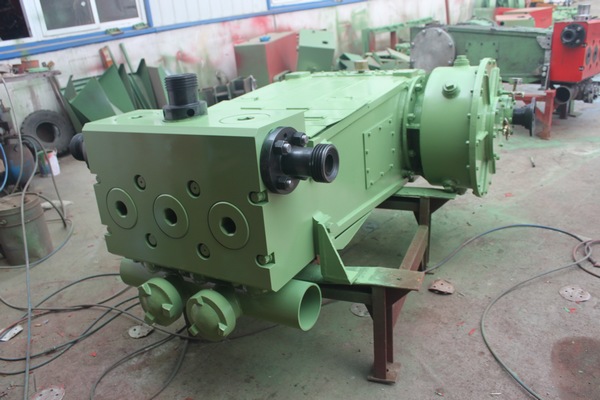

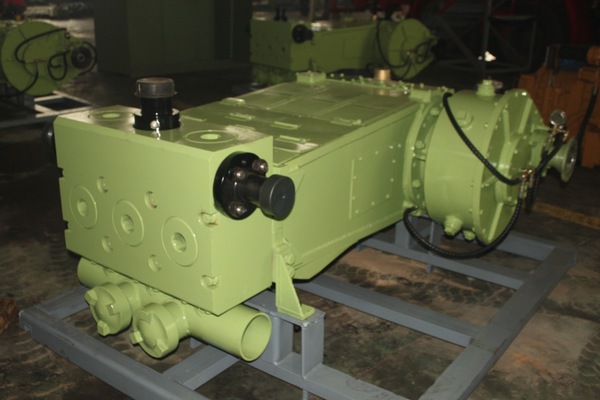

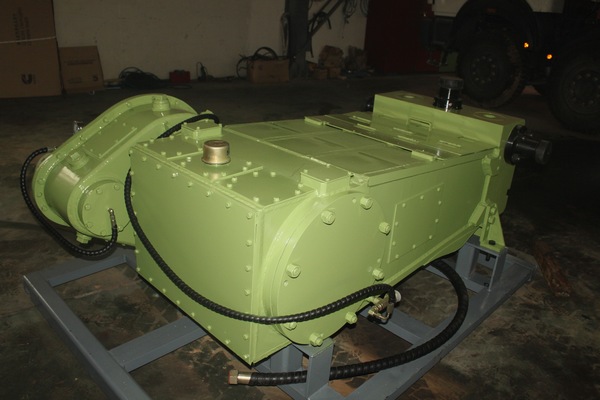

600HP Triplex Plunger Pump

600HP triplex plunger pump is a horizontal single-action reciprocating pump. Its maximum rated input power is 600 HP. This positive displacement pump is widely used for intermittent workover services such as acidizing, cementing, fracturing, well killing and gravel filling. Its main components are power end assemblies, fluid end assemblies and reducing gearbox assemblies. With large power, high pressure and light weight, the 600HP triplex plunger pump is suitable for hydraulic cementing of oil and gas well, and for the small size fracturing engineering.

Features

1. Reducing gearbox assembly can be installed at the right side or the left side of the pump. And there are 17 installations for the reducing gearbox, which allows this 600HP triplex plunger pump to suit various applications.
2. Two sizes of pump body are designed to for installation with different plungers so as to achieve different pressure and displacement.
3. Customer can choose different packing assembly, valve assembly and discharge flange when purchasing our 600HP triplex plunger pumps. More options can meet different requirements and pump special fluids under different conditions.
4. Pump weight will not change largely subject to different plunger size and other options. Pump weight error will remain within ±5% of total weight.

Parameters

Model	600 Pump (Long)	600 Pump (Short)
Rated Max. Brake Horsepower	447 KW	447 KW
Maximum Rod Load:	445000 N	445000 N
Stroke Length	152.4 mm	152.4 mm
Max. SpecificWater Circle	450 rpm	450 rpm
Drive Ratio	4.61:1	4.61:1
Dimension	1626 × 1366 ×607 mm	1292 × 1366 ×607 mm
Weight	2492 kg	2155 kg

Performance

SpecificWater Circle	50		120		200		300		450
Plunger Diameter	Displacement (L/min)	Pressure (Mpa)	Displacement (L/min)	Pressure (Mpa)	Displacement (L/min)	Pressure (Mpa)	Displacement (L/min)	Pressure (Mpa)	Displacement (L/min)	Pressure (Mpa)
3”	104	97.5	250	97.2	110	58.3	625	38.9	938	25.9
3-1/2”	142	71.7	341	70	150	42.8	851	28.6	1277	19
4”	185	54.9	445	54.6	196	32.8	1112	21.9	1668	14.6
4-1/2”	235	43.4	563	43.2	248	25.9	1407	17.3	2111	11.5
