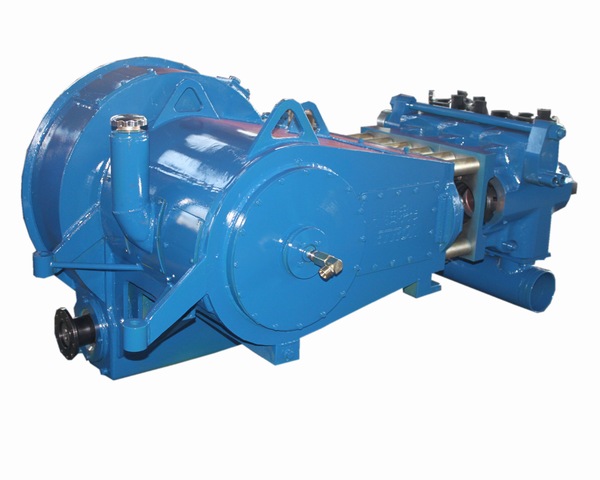

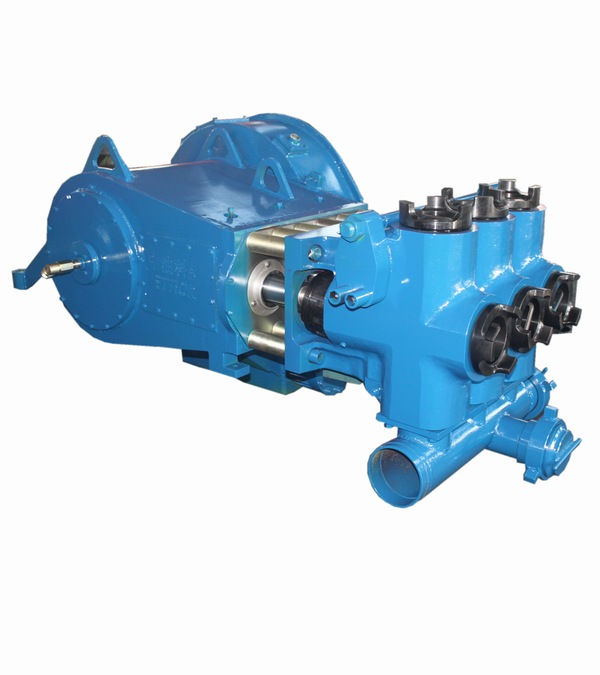

400HP Plunger Pump

LANTYPC® 400HP plunger pump is commonly applied in all phases of intermittent oilfield operations, including pumping water, fracturing fluids and other stimulation fluids. This fracturing/acidizing/cementing pump equipment is composed of three main parts: the power end, the spacer and the fluid end. It is a horizontal single-action reciprocating triplex plunger pump and its maximum input power is 600 H

Parameters

Pump Type:KHP-HT400

Max. Input Power:447 KW

Max. Load of Conrod:9782 N

Stroke:03.2 mm

Max. Specific Water Cycle:224 rpm

Drive Ratio:8.6:1

Dimension:1975 × 976 ×1156 mm

Weight:2910 kg

Performance

Specific Water Cycle (rpm)	32		70		128		171		244
Plunger Diameter	Displacement (L/min)	Pressure(Mpa)	Displacement (L/min)	Pressure(Mpa)	Displacement (L/min)	Pressure(Mpa)	Displacement (L/min)	Pressure(Mpa)	Displacement (L/min)	Pressure(Mpa)
3-3/8”	104	138	245	99	450	54	601	40	860	28
4”	158	97	344	70	632	38	844	29	1207	20
4-1/2”	200	77	435	56	800	30	1068	23	1527	16
