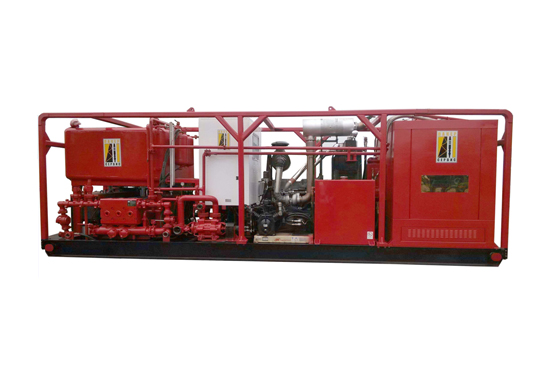

Acidizing Thermal Washing Skid

Pump skid for oil well stimulation is a set of heat&acidification well washing pumps mainly used for workover operations. It is utilized to wash well, kill well and test the pipeline pressure at the well mouth. The acidizing thermal washing skid is constituted by pedestal, diesel engine, hydraulic transfer case, universal drive shaft, three-shaft gearbox, triplex plunger pump, suction/discharge pipeline, controlling system, etc.

Functions

1. Pump skid for oil well stimulation is available for lifting gas and purging the pipeline.
2. It can work in high pressure environment, especially for acidizing and thermal well washing.
3. Even when it is 45° below 0°, the washing skid can work as usual.

Parameters

Product	Acidizing Thermal Washing Skid
Dimension	8600 × 2400 ×3000 mm
Deck Engine	DetroitS60 Engine
Deck Transfer Case	Imported ZF Transfer Case
Plunger Pump	KH600
Max. Working Pressure	97 Mpa
