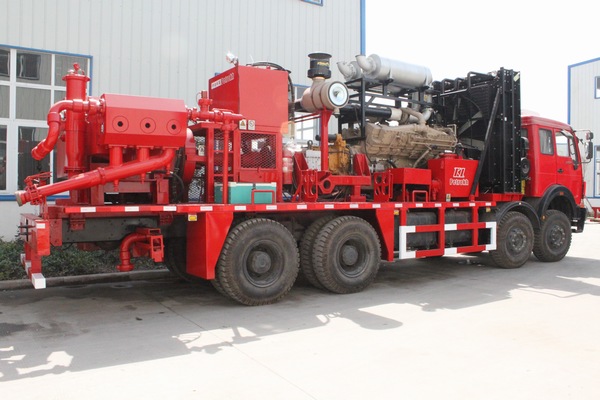

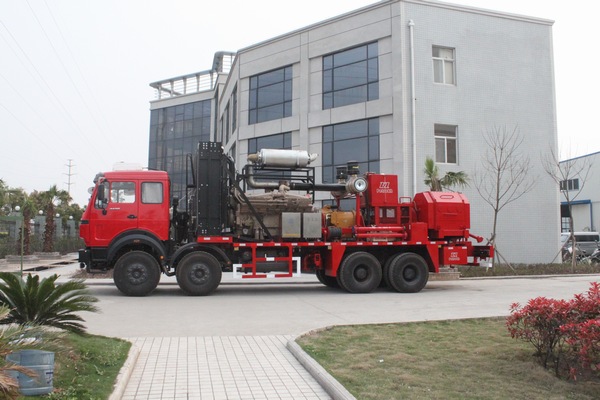

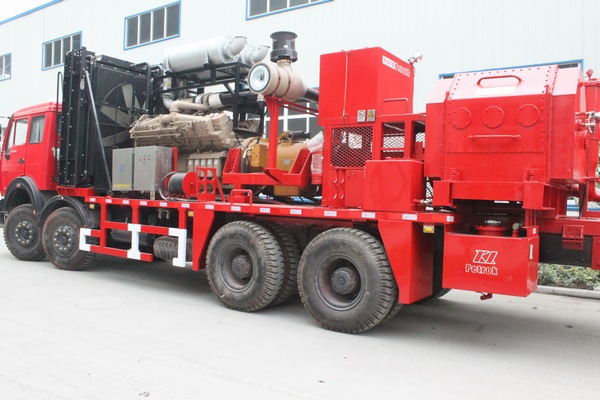

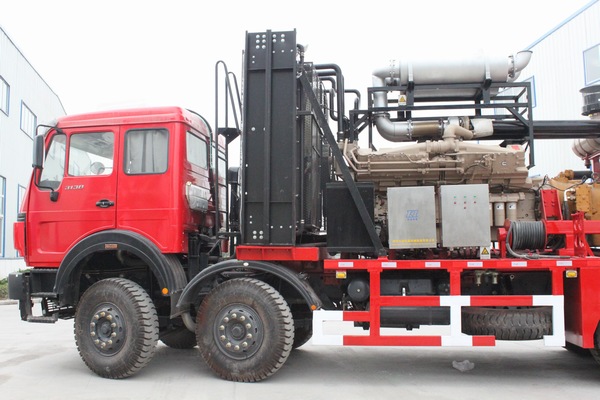

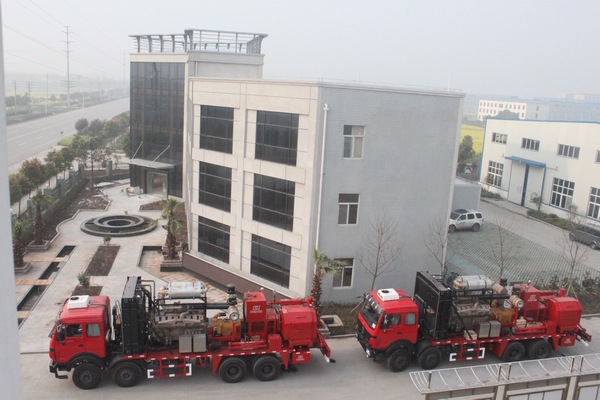

YLC105-1340 Fracturing Truck

YLC105-1340 fracturing truck is equipment with 3ZB105-1340 triplex fracturing pumps. It is suitable for shallow, medium and deep well fracturing operations in oil and gas fields. Maximum pressure of its fracturing pump can reach up to 105 MPa. This truck is mainly composed of chassis, deck engine, hydraulic transmission, triplex plunger pump, high & low pressure manifolds and hydraulic/air control system.

Features

1. Adopting 1800 type triple plunger pump, YLC105-1340Fracturing Truck is suitable for different pumping operations, includingfracturing with prop frac fluid, acidizing, high pressure pumping and pressuretesting
2. Remote control box, instrument van andnetwork control technologies endow this fracturing unit with reliable and safefracturing operations.
3. It is equipped with double overpressure protection device.

Technical Parameters

Product	YLC105-1340 Fracturing Truck (1800 Fracturing Truck)
Chassis	Beiben 8 × 4/8 × 8 Optional: BENZ/MAN
Deck Engine	Cummins KTA50-G8 (2000 hp)
Deck Gearbox	BY2060
Plunger Pumper	1800 Triple Plunger Pump
Maximum Pressure	105 Mpa
Weight	31600 kg
Size	11300 mm ×2500 mm×3900 mm

PerformanceParameters(Motor Rotation Frequency n=1900 r/min)

Shift	Specific Water Cycle	Displacement (L/min)			Pressure (MPa)
Diameter		4”	4-1/2”	5”	4”	4-1/2”	5”
I	76	378	478	590	105	100	80
II	107	527	666	823	105	100	80
III	131	646	818	1006	105	87	68
IV	182	900	1138	1401	79	62.9	49
Ⅴ	287	1416	1793	2213	50	40	31
Ⅵ	332	1639	2075	2561	43	34	26
