YLC105-1490 Fracturing Truck

YLC105-1490 Fracturing Truck
EnglishEnglishRussianRussianFrenchFrenchGermanGermanArabicArabicPortuguesePortuguese

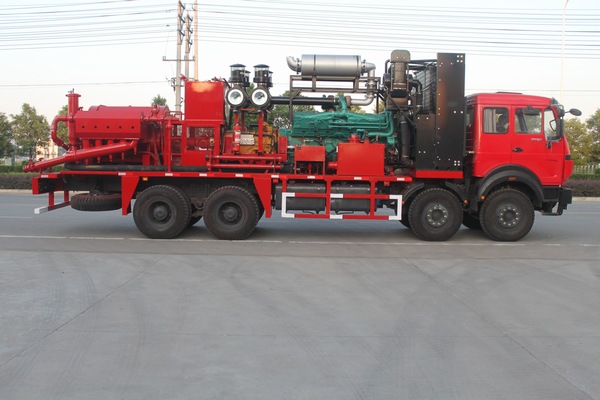

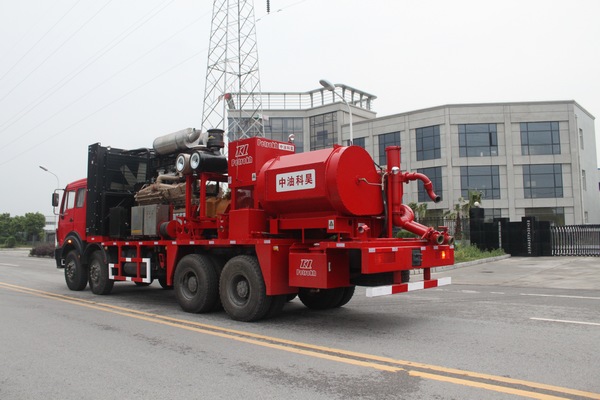

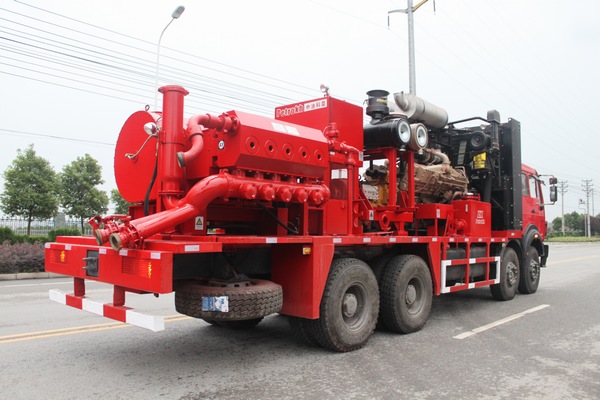

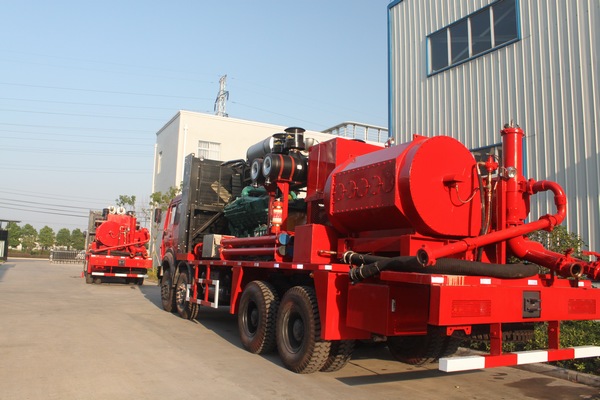

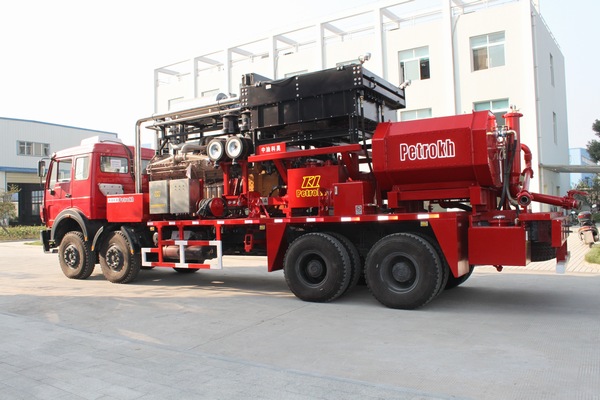

YLC105-1490 fracturing truck (2000) belongs to truck mounted fracturing unit used in oil and gas field. It is applicable for various fracturing work in large/medium/small-depth wells. With 3ZB-1490 triplex plunger pumps, the maximum pressure generated is up to 105 MPa. Main components of this fracturing unit are chassis, deck engine, hydraulic transmission, triple plunger pump, high&low pressure manifold and hydraulic/air control system.

Features

1. 2000/YLC105-1490 truck mounted fracturing unit is suitable for pumping various pumping liquids, including those containing proppants for hydraulic and acidfracturing. Besides, It also works well in pressure testing.
2. Working security and reliability are ensured due to remote controlling system, data van and network controlling technology.
3. Double over-pressure protection device is applied.

Technical Parameters

Product YLC2000 Fracturing Truck (2000 Fracturing Truck)
Chassis Beiben 8 × 4/8 × 8 Optional: BENZ/MAN
Deck Engine Cummins KTA50-G8/MTU12V-4000 (2250 hp)
Deck Gearbox BY2000/Allison S9820M
Plunger Pump 2500 Quintuple Plunger Pump
Maximum Pressure 105 Mpa
Weight 33600 kg
Size 11300 mm ×2500 mm×4000 mm
  • Performance Parameters(Motor Rotation Frequency n=1900 r/min)
    • Shift Specific Water Cycle Displacement (L/min) Pressure (MPa)
    Diameter 4” 4-1/2” 5” 4” 4-1/2” 5”
    I 76 622 787 972 105 85 68.6
    II 105 867 1097 1335 92 73 58
    III 129 1060 1342 1657 76 60 47
    IV 160 1318 1668 2059 61 48 38
    Ⅴ 179 1476 1868 2307 54 43 34
    Ⅵ 223 1837 2325 2870 43 34 27
    Ⅶ 283 2333 2952 3644 34 27 21
